Wang 701 Output Writer Data Sheet


Your Browser Does Not Support Embedded PDF, Please See Download Link Below

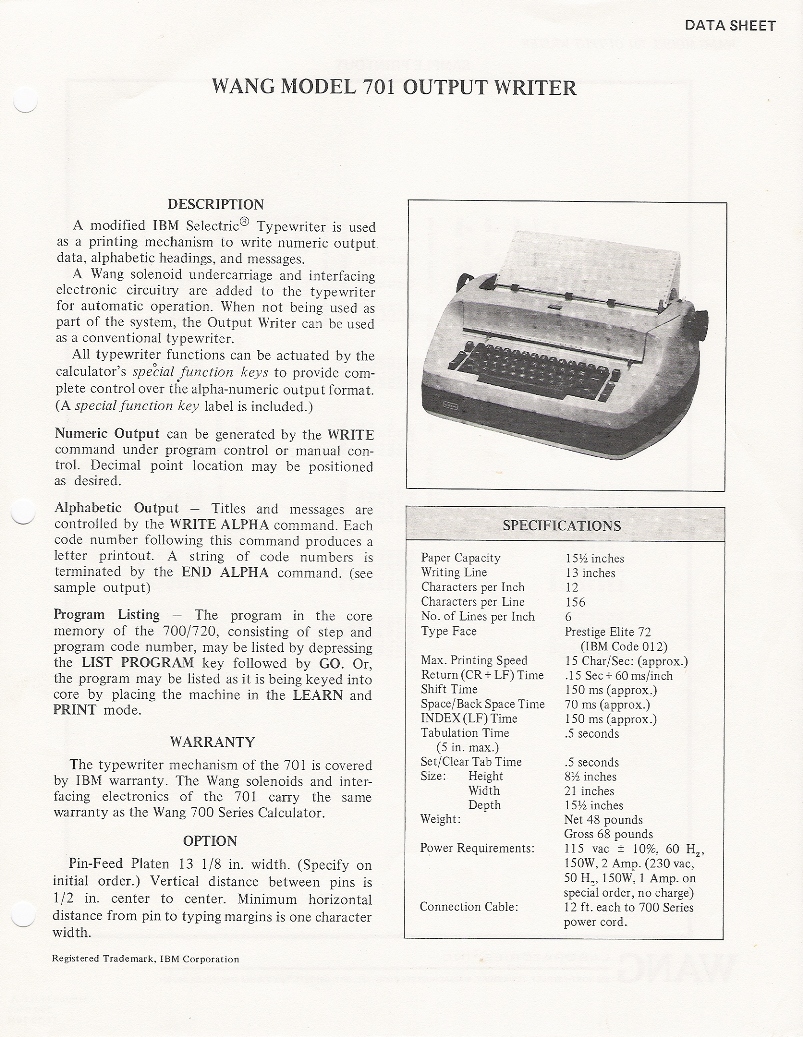

Wang 701 Output Writer Data sheet
November, 1970

The Wang 701 Output Writer is a Wang-modified IBM Selectric I (Model 72) electric typewriter. Wang's modifications involve adding numerous solenoids and linkages that allow the solenoids to electrically operate the typewriter. The modifications require a spacer between the base of the typewriter and the main body to accommodate the additional room required for the solenoid mechanisms. Along with the mechanical modifications, a circuit board in the base of the typewriter serves to translate the codes coming from the 700-series calculator connected to the 701 into the necessary solenoid and timing actions to drive the typewriter. Special program codes on the 700-series calculator allow full control of the typewriter to allow formatted output to be generated.
